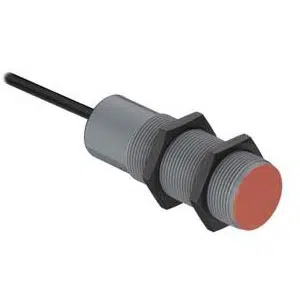

Leuze LCS-2M30P-F20NNO-K020V Proximity Sensor
Leuze LCS-2M30P-F20NNO-K020V proximity sensor delivers 16.2 mm assured capacitive switching with NPN NO output embedded M30 housing design format. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses a 3-wire PVC cable connection, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer, positioning it within the Leuze portfolio, under Leuze Proximity Sensor, and as part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30P-F20NNO-K020V |
Leuze LCS-2M30P-F20NNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 20 mm |
| Assured switching distance | 16.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30P-F20NNO-K020V Leuze 20mm NPN NO Capacitive Sensor is a proximity sensor designed for capacitive detection in industrial automation systems. This model provides a 16.2 mm assured switching distance, operates on 10–30 V DC, and uses a NPN normally open output for standard control logic. It belongs to the LCS series and is intended for embedded capacitive sensing applications.
In industrial use, the LCS-2M30P-F20NNO-K020V proximity sensor is applied in conveyors, packaging machinery, automated assembly lines, and material handling systems. The M30 cylindrical embedded design allows flush mounting, while adjustable sensitivity supports reliable detection of different materials. Its defined switching frequency enables stable signal transmission within PLC-based automation environments.
The LCS-2M30P-F20NNO-K020V proximity sensor reflects Leuze engineering standards for electrical stability and environmental protection. With IP67 protection, controlled operating current, and a wide ambient temperature range, it is suitable for continuous industrial operation. As a Leuze 20mm NPN NO Capacitive Sensor within the LCS series, this model supports dependable integration into industrial automation systems.
