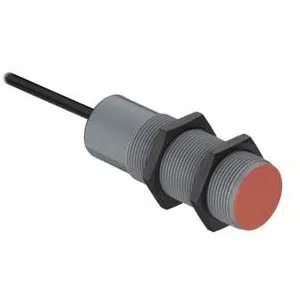

Leuze LCS-2M30P-F20NNC-K020V Proximity Sensor
Leuze LCS-2M30P-F20NNC-K020V proximity sensor provides 16.2 mm assured capacitive switching with NPN NC output and embedded M30 housing design. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses a 3-wire PVC cable connection, and offers IP67 protection with sensitivity adjustment via multiturn potentiometer, placing it within the Leuze portfolio, under Leuze Proximity Sensor, and in the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30P-F20NNC-K020V |
Leuze LCS-2M30P-F20NNC-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 20 mm |
| Assured switching distance | 16.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30P-F20NNC-K020V Leuze 10 to 30VDC Capacitive Sensor is a proximity sensor designed for capacitive detection in industrial automation environments. This model supports a 16.2 mm assured switching distance, operates with a 10–30 V DC supply, and uses a NPN normally closed output for defined control logic. As part of the LCS series, it is applied where stable embedded capacitive sensing is required.
In industrial applications, the LCS-2M30P-F20NNC-K020V proximity sensor is used in conveyors, packaging machinery, automated assembly lines, and material handling systems. The cylindrical M30 embedded design allows flush mounting, while adjustable sensitivity supports reliable detection of different materials. Its defined switching frequency enables consistent signal transfer within PLC-controlled automation systems.
The LCS-2M30P-F20NNC-K020V proximity sensor reflects Leuze engineering standards for electrical stability and environmental protection. With IP67 protection, controlled operating current, and a wide ambient temperature range, it is suitable for continuous industrial operation. As a Leuze 10 to 30VDC Capacitive Sensor within the LCS series, this model supports dependable integration into industrial automation systems.
