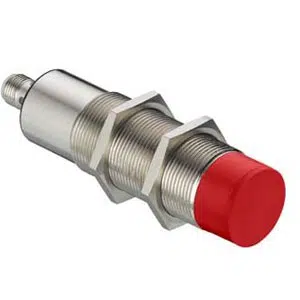

Leuze LCS-2M30B-N30PNO-M12 Proximity Sensor
The Leuze LCS-2M30B-N30PNO-M12 Proximity Sensor provides 2–30 mm capacitive sensing, PNP normally open output, and 10–30 V DC supply. This Leuze proximity sensor uses a non-embedded M30 cylindrical metal housing, IP67 protection, 100 Hz switching frequency, M12 4-pin connector, adjustable sensing distance, and is part of the Leuze Proximity Sensor range within the LCS series, defining the LCS-2M30B-N30PNO-M12 as a Leuze M30 PNP NO Capacitive Sensor.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30B-N30PNO-M12 |
Leuze LCS-2M30B-N30PNO-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 30 mm |
| Assured switching distance | 24.3 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 98 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30B-N30PNO-M12 Leuze M30 PNP NO Capacitive Sensor is a proximity sensor engineered for precise non-contact detection in industrial automation systems. The LCS-2M30B-N30PNO-M12 operates with a 2–30 mm sensing distance, PNP normally open switching output, and 10–30 V DC operating voltage. It belongs to the LCS series and is used across automation environments requiring stable capacitive detection.
This Leuze proximity sensor is commonly installed on conveyors, packaging machines, automated assembly stations, and material handling equipment. The sensor supports consistent object detection at extended capacitive ranges, ensuring stable output signals, resistance to dust and moisture, and dependable performance during continuous industrial operation.
The LCS-2M30B-N30PNO-M12 Leuze M30 PNP NO Capacitive Sensor combines defined sensing performance, mechanical compatibility, and electrical reliability for industrial use. With its IP67-rated construction, adjustable sensitivity, and standard M30 threaded design, this Leuze proximity sensor is suitable for long-term automation applications where predictable switching behavior and brand reliability are required.
