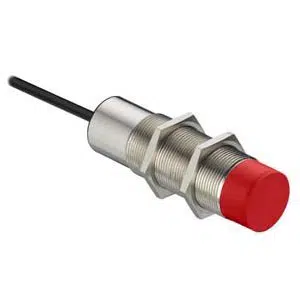

Leuze LCS-2M30B-N30PNO-K020V Proximity Sensor
The Leuze LCS-2M30B-N30PNO-K020V Proximity Sensor delivers 2–30 mm capacitive sensing, PNP normally open output, and 10–30 V DC supply. This Leuze proximity sensor features a non-embedded M30 cylindrical metal housing, IP67 protection, 100 Hz switching frequency, and a 3-wire PVC cable 2000 mm connection, and belongs to the Leuze Proximity Sensor category within the LCS series, identifying the LCS-2M30B-N30PNO-K020V as a Leuze 30mm PVC 2000mm Cable Sensor.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30B-N30PNO-K020V |
Leuze LCS-2M30B-N30PNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 30 mm |
| Assured switching distance | 24.3 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30B-N30PNO-K020V Leuze 30mm PVC 2000mm Cable Sensor is a proximity sensor used for non-contact object detection in industrial automation systems. The LCS-2M30B-N30PNO-K020V operates with a 2–30 mm sensing distance, PNP normally open switching output, and 10–30 V DC operating voltage. It belongs to the LCS series and is applied in industrial automation environments requiring stable capacitive sensing.
This Leuze proximity sensor is installed in conveyors, packaging machinery, automated assembly lines, and material handling systems. It supports reliable detection at extended sensing ranges, maintaining stable output signals and consistent performance during vibration, dust exposure, and continuous industrial operation.
The LCS-2M30B-N30PNO-K020V Leuze 30mm PVC 2000mm Cable Sensor combines defined sensing performance, mechanical compatibility, and electrical stability for industrial use. With its IP67-rated construction, adjustable sensitivity, and fixed cable connection, this Leuze proximity sensor is suitable for long-term installations where predictable normally open switching behavior and brand reliability are required.
