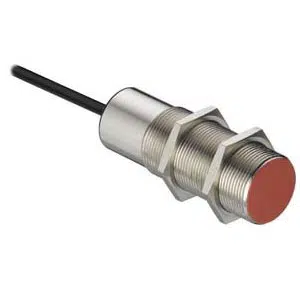

Leuze LCS-2M30B-F20PNC-K020V Proximity Sensor
Leuze LCS-2M30B-F20PNC-K020V proximity sensor delivers 16.2 mm assured capacitive switching with PNP NC output embedded M30 housing design format. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses a 2 m PVC cable connection, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer, aligning it with the Leuze portfolio, categorized under Leuze Proximity Sensor, and included in the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30B-F20PNC-K020V |
Leuze LCS-2M30B-F20PNC-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 20 mm |
| Assured switching distance | 16.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30B-F20PNC-K020V Leuze 20mm PNP NC Capacitive Sensor is a proximity sensor designed for non-contact capacitive detection in industrial automation systems. This model supports a 16.2 mm assured switching distance, operates on 10–30 V DC, and provides a PNP normally closed output. It belongs to the LCS series and is intended for embedded installation where stable electrical behavior and controlled sensing are required.
In industrial applications, the LCS-2M30B-F20PNC-K020V proximity sensor is used in conveyors, packaging machinery, automated assembly lines, and material handling systems. The cylindrical M30 metal housing supports flush mounting in heavy-duty machine structures, while adjustable sensitivity enables consistent detection across different materials. Defined switching frequency helps maintain predictable signal behavior in automation control circuits.
The LCS-2M30B-F20PNC-K020V proximity sensor reflects Leuze engineering standards focused on mechanical durability and electrical consistency. With IP67 protection, controlled operating current, and robust metal housing, it is suitable for continuous industrial operation. As a Leuze 20mm PNP NC Capacitive Sensor within the LCS series, this model supports dependable integration into industrial automation environments requiring embedded capacitive sensing.
