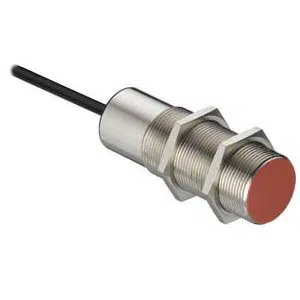

Leuze LCS-2M30B-F20NNO-K020V Proximity Sensor
Leuze LCS-2M30B-F20NNO-K020V proximity sensor delivers 16.2 mm assured capacitive switching with NPN NO output embedded M30 housing design format. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses a 2 m PVC cable connection, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer, aligning it with the Leuze portfolio, categorized under Leuze Proximity Sensor, and included in the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30B-F20NNO-K020V |
Leuze LCS-2M30B-F20NNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 20 mm |
| Assured switching distance | 16.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30B-F20NNO-K020V Leuze Sn-2-20mm Capacitive Sensor is a proximity sensor used for non-contact capacitive detection in industrial automation systems. This model provides a 16.2 mm assured switching distance, operates on 10–30 V DC, and features an NPN normally open output. It belongs to the LCS series and is designed for embedded mounting in industrial automation environments.
In industrial applications, the LCS-2M30B-F20NNO-K020V proximity sensor is implemented in conveyors, packaging machines, automated assembly lines, and material handling systems. The cylindrical M30 metal housing supports flush installation in heavy-duty machinery, while adjustable sensitivity enables stable detection across different materials. Defined switching frequency ensures predictable signal behavior within automation control systems.
The LCS-2M30B-F20NNO-K020V proximity sensor reflects Leuze engineering standards focused on mechanical durability and electrical consistency. With IP67 protection, controlled operating current, and a metal housing, it supports continuous industrial operation. As a Leuze Sn-2-20mm Capacitive Sensor within the LCS series, this model is suitable for industrial automation applications requiring embedded capacitive sensing with normally open NPN output.
