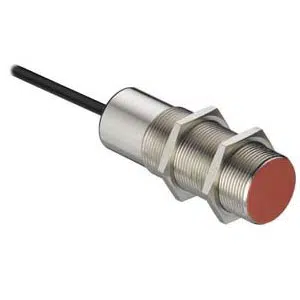

Leuze LCS-2M30B-F20NNC-K020V Proximity Sensor
Leuze LCS-2M30B-F20NNC-K020V proximity sensor delivers 16.2 mm assured capacitive switching with NPN NC output embedded M30 housing design format. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses a 2 m PVC cable connection, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer, aligning it with the Leuze portfolio, categorized under Leuze Proximity Sensor, and included in the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M30B-F20NNC-K020V |
Leuze LCS-2M30B-F20NNC-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 20 mm |
| Assured switching distance | 16.2 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M30B-F20NNC-K020V Leuze 1.5mm NC Capacitive Sensor is a proximity sensor used for capacitive object detection in industrial automation systems. This model supports a 16.2 mm assured switching distance, operates on 10–30 V DC, and provides an NPN normally closed output. It belongs to the LCS series and is designed for embedded installation in controlled industrial automation environments.
In industrial applications, the LCS-2M30B-F20NNC-K020V proximity sensor is integrated into conveyors, packaging equipment, automated assembly lines, and material handling systems. The cylindrical M30 metal housing allows flush mounting in heavy-duty machinery, while adjustable sensitivity supports stable detection across varying materials. Defined switching frequency ensures predictable signal behavior within automation control systems.
The LCS-2M30B-F20NNC-K020V proximity sensor reflects Leuze engineering standards for mechanical durability and electrical consistency. With IP67 protection, controlled operating current, and a metal housing, it is suitable for continuous industrial operation. As a Leuze 1.5mm NC Capacitive Sensor within the LCS series, this model supports dependable integration into industrial automation applications requiring embedded capacitive sensing.
