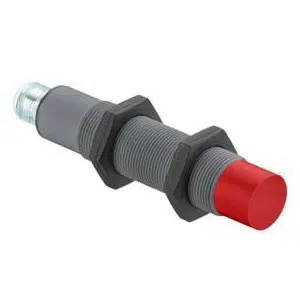

Leuze LCS-2M18P-N15PNO-M12 Proximity Sensor
Leuze LCS-2M18P-N15PNO-M12 proximity sensor offers 2–15 mm capacitive sensing with 12.1 mm assured switching distance and PNP NO output. This Leuze PNP NO Capacitive Sensor operates on 10–30 V DC, supports non-embedded installation, uses an M12 4-pin connector, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer. It belongs to the Leuze portfolio, is categorized under Leuze Proximity Sensor, and forms part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18P-N15PNO-M12 |
Leuze LCS-2M18P-N15PNO-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 12.1 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 85 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18P-N15PNO-M12 Leuze PNP NO Capacitive Sensor is a proximity sensor designed for reliable capacitive detection in industrial automation systems. This model supports a 2–15 mm sensing distance, a 12.1 mm assured switching distance, and a PNP normally open transistor output operating on 10–30 V DC. It belongs to the LCS series and is applied where consistent non-contact sensing is required.
The LCS-2M18P-N15PNO-M12 proximity sensor is used in conveyors, packaging equipment, automated assembly lines, and material handling applications. Its M18 cylindrical design supports secure mounting, while non-embedded installation enables flexible placement. Adjustable sensitivity helps maintain stable detection across varying target materials and industrial operating conditions.
The LCS-2M18P-N15PNO-M12 proximity sensor reflects Leuze standards for electrical stability and mechanical reliability. With IP67 protection, defined operating current limits, and a wide ambient temperature range, it supports continuous industrial use. As part of the Leuze LCS capacitive sensor series, this model is suitable for dependable sensing tasks in industrial automation environments.
