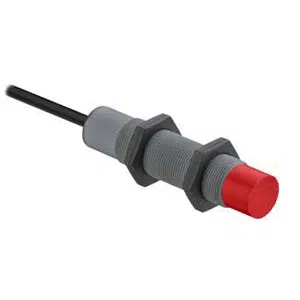

Leuze LCS-2M18P-N15PNO-K020V Proximity Sensor
Leuze LCS-2M18P-N15PNO-K020V proximity sensor provides 2–15 mm capacitive sensing with 12.1 mm assured switching distance and PNP open output. This Leuze 70mm Transistor Capacitive Sensor operates on 10–30 V DC, supports non-embedded installation, uses a 2,000 mm PVC cable connection, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer. It belongs to the Leuze portfolio, is categorized under Leuze Proximity Sensor, and forms part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18P-N15PNO-K020V |
Leuze LCS-2M18P-N15PNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 12.1 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 70 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18P-N15PNO-K020V Leuze 70mm Transistor Capacitive Sensor is a proximity sensor designed for capacitive detection in industrial automation systems. This model supports a 2–15 mm sensing distance, a 12.1 mm assured switching distance, and a PNP normally open switching output operating on 10–30 V DC. It belongs to the LCS series and is used where reliable non-contact sensing is required.
The LCS-2M18P-N15PNO-K020V proximity sensor is applied in conveyors, packaging machinery, automated assembly lines, and material handling systems. Its M18 cylindrical metal housing supports secure mounting, while non-embedded installation allows flexible placement. Adjustable sensitivity ensures stable detection performance across different materials and changing operating conditions.
The LCS-2M18P-N15PNO-K020V proximity sensor reflects Leuze standards for electrical reliability and environmental protection. With IP67 ingress protection, defined operating current limits, and a wide ambient temperature range, it supports continuous industrial operation. As part of the Leuze LCS capacitive sensor series, this model is suitable for dependable sensing tasks in demanding industrial automation environments.
