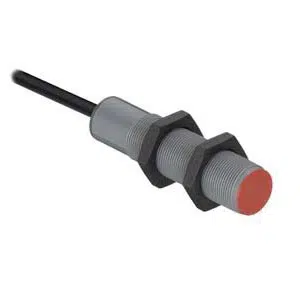

LCS-2M18P-F08PNO-K020V: 50136545 - Leuze 6.5mm PNP Capacitive Sensor
Technical Specifications of Leuze LCS-2M18P-F08PNO-K020V 50136545:
| Design | Cylindrical |
| Sensing Distance | 2 ... 8 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
Leuze 6.5mm PNP Capacitive Sensor LCS-2M18P-F08PNO-K020V, 50136545 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Γ x L) | 18 mm x 70 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Talk to Our Engineer for Leuze 6.5mm PNP Capacitive Sensor LCS-2M18P-F08PNO-K020V part no: 50136545 at unbeatable prices. The Main Technical Parameters of LCS-2M18P-F08PNO-K020V, 50136545 are LCS-2 series, 2 ... 8 mm sensing distance, 6.5 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NO (normally open) output, 100 Hz switching frequency, PVC,Cable 2,000 mm Length, 3 -wire, Cylindrical, 18 mm x 70 mm dimension, Embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection.Capture the Best Deal with a Quote for your requirement of Leuze 6.5mm PNP Capacitive Sensor. Our promise: More affordable pricing and more personalized support than other Dealers.
