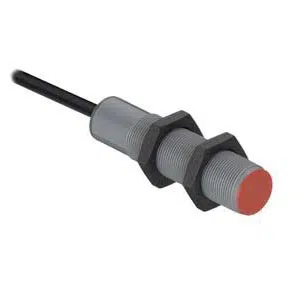

Leuze LCS-2M18P-F08NNO-K020V Proximity Sensor
Leuze LCS-2M18P-F08NNO-K020V proximity sensor provides 6.5 mm assured capacitive switching with NPN NO output in embedded M18 housing. This Leuze proximity sensor operates on 10–30 V DC, supports embedded installation, uses a 2 m PVC cable connection, and offers IP67 protection with sensitivity adjustment via multiturn potentiometer, aligning it with the Leuze portfolio, classified under Leuze Proximity Sensor, and included in the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18P-F08NNO-K020V |
Leuze LCS-2M18P-F08NNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 70 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18P-F08NNO-K020V Leuze M18 NPN NO Capacitive Sensor is a proximity sensor used for capacitive object detection in industrial automation systems. This model supports a 6.5 mm assured switching distance, operates on 10–30 V DC, and provides an NPN normally open output. It belongs to the LCS series and is designed for embedded mounting where consistent electrical response and defined sensing behavior are required.
In industrial applications, the LCS-2M18P-F08NNO-K020V proximity sensor is integrated into conveyors, packaging machinery, automated assembly lines, and material handling equipment. The cylindrical M18 design allows flush installation in compact machine layouts, while adjustable sensitivity helps maintain stable detection across different materials. Defined switching frequency supports predictable signal handling in automation control systems.
The LCS-2M18P-F08NNO-K020V proximity sensor reflects Leuze engineering standards focused on electrical consistency and mechanical stability. With IP67 protection, controlled operating current, and durable plastic housing, it is suitable for continuous industrial operation. As a Leuze M18 NPN NO Capacitive Sensor within the LCS series, this model supports dependable integration into industrial automation environments requiring embedded capacitive sensing.
