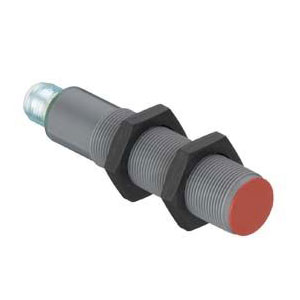

LCS-2M18P-F08NNC-M12: 50136544 - Leuze 6.5mm Switching Distance Sensor
Technical Specifications of Leuze LCS-2M18P-F08NNC-M12 50136544:
| Design | Cylindrical |
| Sensing Distance | 2 ... 8 mm |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze 6.5mm Switching Distance Sensor LCS-2M18P-F08NNC-M12, 50136544 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Γ x L) | 18 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze 6.5mm Switching Distance Sensor LCS-2M18P-F08NNC-M12 part no: 50136544 at attractive prices. Engineering Specifications of LCS-2M18P-F08NNC-M12, 50136544 detail LCS-2 series, 2 ... 8 mm sensing distance, 6.5 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NC (normally closed) output, 100 Hz switching frequency, M12 Connector, 4 -pin, Cylindrical, 18 mm x 85 mm dimension, Embedded, Plastic, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 6.5mm Switching Distance Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
