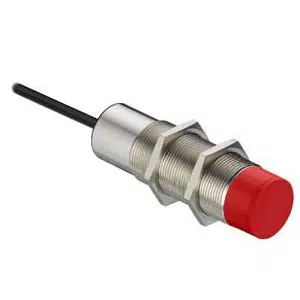

Leuze LCS-2M18B-N15NNC-K020V Proximity Sensor
Leuze LCS-2M18B-N15NNC-K020V proximity sensor delivers 2β15 mm capacitive detection with 12.1 mm assured switching distance accuracy. This Leuze 70mm NPN Capacitive Sensor operates on 10β30 V DC, uses a NPN normally closed output, supports non-embedded installation, and provides IP67 protection with sensitivity adjustment via multiturn potentiometer. It belongs to the Leuze portfolio, is categorized under Leuze Proximity Sensor, and forms part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18B-N15NNC-K020V |
Leuze LCS-2M18B-N15NNC-K020V Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 12.1 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Γ x L) | 18 mm x 70 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18B-N15NNC-K020V Leuze 70mm NPN Capacitive Sensor is a proximity sensor designed for capacitive object detection in industrial automation environments. This model supports a 2β15 mm sensing distance, a 12.1 mm assured switching distance, and a NPN normally closed transistor output operating on 10β30 V DC. It belongs to the LCS series and is applied where stable non-contact sensing is required.
The LCS-2M18B-N15NNC-K020V proximity sensor is commonly used in conveyors, packaging systems, automated assembly lines, and material handling equipment. Its M18 cylindrical metal housing enables secure mounting, while non-embedded installation allows flexible positioning. Adjustable sensitivity supports reliable detection across varying materials and operating conditions in industrial processes.
The LCS-2M18B-N15NNC-K020V proximity sensor reflects Leuze design standards for electrical stability and mechanical durability. With IP67 protection, defined current limits, and a wide operating temperature range, it supports continuous industrial operation. As part of the Leuze LCS capacitive sensor series, this model is suitable for dependable sensing tasks in industrial automation systems.
