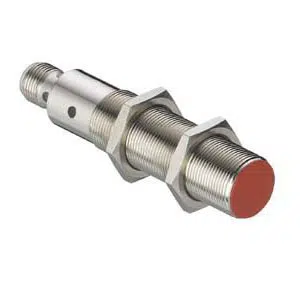

Leuze LCS-2M18B-F08NNC-M12 Proximity Sensor
The LCS-2M18B-F08NNC-M12 proximity sensor provides 2–8 mm sensing distance with NPN NC output using 10–30 V DC supply operation. This LCS-2M18B-F08NNC-M12 Leuze 85mm NPN Capacitive Sensor from Leuze supports 6.5 mm assured switching distance, 200 mA rated operating current, M12 connector interface, and IP67 protection, is categorized under Leuze Proximity Sensor, and belongs to the LCS Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18B-F08NNC-M12 |
Leuze LCS-2M18B-F08NNC-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 85 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18B-F08NNC-M12 Leuze 85mm NPN Capacitive Sensor is a proximity sensor designed for embedded detection tasks in industrial automation systems. It operates with a 2–8 mm sensing distance, NPN normally closed output, and a 10–30 V DC supply. This model is part of the LCS series and supports consistent capacitive sensing performance.
The LCS-2M18B-F08NNC-M12 Leuze 85mm NPN Capacitive Sensor is commonly applied in conveyors, packaging machinery, automated assembly stations, and material handling equipment. Its M18 threaded cylindrical design allows embedded mounting, while adjustable sensitivity ensures stable output under varying material and environmental conditions.
The LCS-2M18B-F08NNC-M12 proximity sensor from Leuze delivers predictable switching behavior with IP67-rated protection for industrial environments. As a member of the LCS series, it is suited for long-term use in automation systems where reliable normally closed NPN output logic is required.
