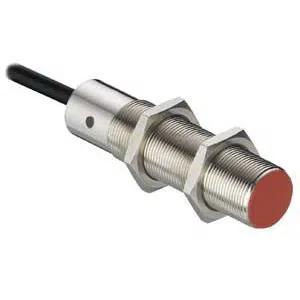

Leuze LCS-2M18B-F08NNC-K020V Proximity Sensor
The LCS-2M18B-F08NNC-K020V proximity sensor provides 2–8 mm sensing distance with NPN normally closed output using 10–30 V DC supply. This LCS-2M18B-F08NNC-K020V Leuze M18 Transistor Capacitive Sensor from Leuze supports 6.5 mm assured switching distance, 200 mA rated operating current, PVC cable connection with 2 m length, embedded installation, and IP67 protection, is classified under Leuze Proximity Sensor, and belongs to the LCS Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M18B-F08NNC-K020V |
Leuze LCS-2M18B-F08NNC-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 2 ... 8 mm |
| Assured switching distance | 6.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 70 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M18B-F08NNC-K020V Leuze M18 Transistor Capacitive Sensor is a proximity sensor designed for capacitive detection tasks in industrial automation. It operates with a 2–8 mm sensing distance, NPN normally closed output, and a 10–30 V DC supply. This model belongs to the LCS series and is used in embedded sensing applications requiring stable transistor output.
The LCS-2M18B-F08NNC-K020V Leuze M18 Transistor Capacitive Sensor is applied in conveyors, packaging machines, automated assembly lines, and material handling systems. Its metal M18 cylindrical housing supports reliable mounting, while adjustable sensitivity ensures consistent detection performance across varying materials and operating environments.
The LCS-2M18B-F08NNC-K020V proximity sensor from Leuze provides dependable switching behavior with IP67 environmental protection. As part of the LCS series, it is suitable for industrial automation systems requiring normally closed NPN output logic and durable capacitive sensing reliability.
