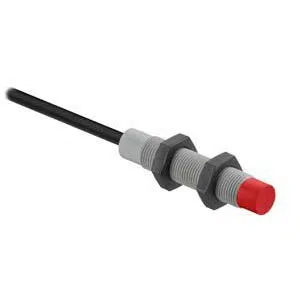

Leuze LCS-2M12P-N06PNO-K020V Proximity Sensor
Leuze LCS-2M12P-N06PNO-K020V proximity sensor delivers 1–6 mm capacitive sensing with 4.9 mm assured switching distance using PNP normally open. This Leuze PVC 2m Cable Capacitive Sensor operates on 10–30 V DC, supports PNP NO transistor output, includes adjustable switching distance, and provides IP67 protection. It belongs to the Leuze portfolio under Leuze Proximity Sensor classification and forms part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M12P-N06PNO-K020V |
Leuze LCS-2M12P-N06PNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 1 ... 6 mm |
| Assured switching distance | 4.9 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 55 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M12P-N06PNO-K020V Leuze PVC 2m Cable Capacitive Sensor is a proximity sensor designed for precise non-contact detection in industrial automation environments. This model offers a 1–6 mm sensing distance, a 4.9 mm assured switching distance, and a PNP normally open output operating on 10–30 V DC. It is part of the LCS series and is used where stable capacitive detection is required in automated systems.
In practical applications, the LCS-2M12P-N06PNO-K020V proximity sensor is used in conveyors, packaging machines, assembly stations, and general automation lines. The PVC 2 m cable connection supports flexible installation, while non-embedded mounting suits compact machinery layouts. Adjustable sensitivity helps maintain reliable switching performance when detecting materials with varying dielectric properties.
The LCS-2M12P-N06PNO-K020V proximity sensor reflects Leuze design standards for electrical stability and environmental resistance. With IP67 protection, defined operating current, and a wide ambient temperature range, it supports continuous industrial operation. As a Leuze PVC 2m Cable Capacitive Sensor within the LCS series, this proximity sensor is suitable for consistent and repeatable detection tasks in industrial automation systems.
