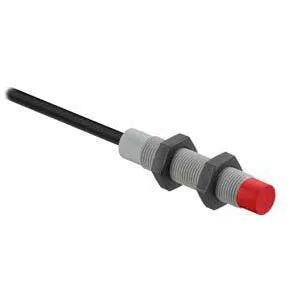

Leuze LCS-2M12P-N06NNO-K020V Proximity Sensor
Leuze LCS-2M12P-N06NNO-K020V proximity sensor provides 1–6 mm capacitive sensing with 4.9 mm switching distance using NPN NO output transistor. This Leuze 6mm NPN NO Capacitive Sensor operates on 10–30 V DC, supports non-embedded installation, and offers IP67 protection with sensitivity adjustment via potentiometer. It belongs to the Leuze portfolio, is classified under Leuze Proximity Sensor, and forms part of the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M12P-N06NNO-K020V |
Leuze LCS-2M12P-N06NNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 1 ... 6 mm |
| Assured switching distance | 4.9 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 55 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M12P-N06NNO-K020V Leuze 6mm NPN NO Capacitive Sensor is a proximity sensor designed for stable non-contact detection in industrial automation systems. This model supports a 1–6 mm sensing distance, a 4.9 mm assured switching distance, and a NPN normally open output operating on 10–30 V DC. It belongs to the LCS series and is applied where consistent capacitive sensing is required.
In practical applications, the LCS-2M12P-N06NNO-K020V proximity sensor is used in conveyors, packaging machines, automated assembly lines, and material handling systems. The PVC 2 m cable connection supports flexible installation, while non-embedded mounting suits compact equipment designs. Adjustable sensitivity enables reliable detection of different materials under varying industrial conditions.
The LCS-2M12P-N06NNO-K020V proximity sensor reflects Leuze design standards for electrical stability and environmental resistance. With IP67 protection, defined operating current limits, and a wide ambient temperature range, it supports continuous industrial operation. As a Leuze capacitive sensor within the LCS series, this model is suitable for dependable sensing requirements across industrial automation environments.
