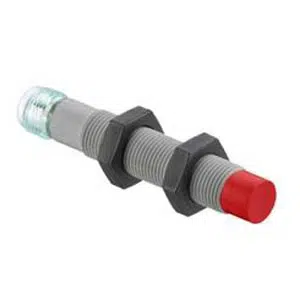

Leuze LCS-2M12P-N06NNC-M12 Proximity Sensor
Leuze LCS-2M12P-N06NNC-M12 proximity sensor provides 1–6 mm capacitive sensing with 4.9 mm assured switching distance using NPN NC output. This Leuze Transistor NC Capacitive Sensor operates on 10–30 V DC, supports IP67 protection, includes sensitivity adjustment, and is part of the Leuze range under Leuze Proximity Sensor within the LCS capacitive sensor series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M12P-N06NNC-M12 |
Leuze LCS-2M12P-N06NNC-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 1 ... 6 mm |
| Assured switching distance | 4.9 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 68 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M12P-N06NNC-M12 Leuze Transistor NC Capacitive Sensor is a proximity sensor designed for stable non-contact detection in industrial automation systems. This model offers a 1–6 mm sensing distance, a 4.9 mm assured switching distance, and an NPN normally closed output operating on 10–30 V DC. It belongs to the LCS series and supports consistent signal control within automated machinery.
In application environments, the LCS-2M12P-N06NNC-M12 proximity sensor is commonly used in conveyors, packaging lines, assembly stations, and general automation setups. The cylindrical M12 form factor allows straightforward installation, while adjustable sensitivity helps maintain reliable detection across varying materials. Controlled switching frequency ensures predictable performance in PLC-based control architectures.
The LCS-2M12P-N06NNC-M12 proximity sensor reflects Leuze manufacturing standards for electrical stability and environmental protection. With IP67 enclosure rating, defined operating current, and a wide ambient temperature range, it supports long-term industrial use. As a Leuze Transistor NC Capacitive Sensor within the LCS series, this model is suitable for dependable sensing requirements across industrial automation systems.
