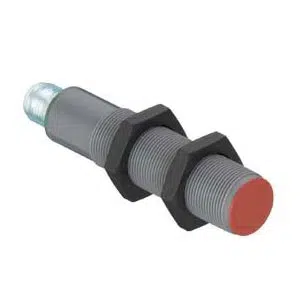

Leuze LCS-2M12P-F03PNO-M12 Proximity Sensor
The Leuze LCS-2M12P-F03PNO-M12 proximity sensor delivers 1–3 mm sensing distance with PNP NO output at 10–30 V DC supply. This LCS-2M12P-F03PNO-M12 Leuze 68mm PNP Capacitive Sensor from Leuze supports 200 mA rated operating current, M12 4-pin connector, IP67 protection, and an embedded cylindrical housing, is classified under the Leuze Proximity Sensor category, and belongs to the LCS Series for capacitive sensing applications.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M12P-F03PNO-M12 |
Leuze LCS-2M12P-F03PNO-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 1 ... 3 mm |
| Assured switching distance | 2.4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 68 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M12P-F03PNO-M12 Leuze 68mm PNP Capacitive Sensor is a proximity sensor designed for embedded capacitive detection in industrial automation systems. This model operates with a 1–3 mm sensing distance, PNP normally open output, and a 10–30 V DC supply to ensure stable switching performance. It belongs to the LCS series and is used where compact M12-mounted capacitive sensing is required.
The LCS-2M12P-F03PNO-M12 Leuze 68mm PNP Capacitive Sensor is applied in conveyors, packaging machinery, automated assembly stations, and material handling equipment. Its embedded installation design allows flush mounting in space-limited environments. Adjustable sensitivity supports consistent detection of materials while maintaining reliable output behavior during continuous operation.
The LCS-2M12P-F03PNO-M12 proximity sensor from Leuze provides defined electrical characteristics, IP67 environmental protection, and dependable performance across industrial temperature ranges. As part of the LCS series, it supports long-term use in industrial automation environments. Its PNP normally open output configuration ensures predictable capacitive sensing integration.
