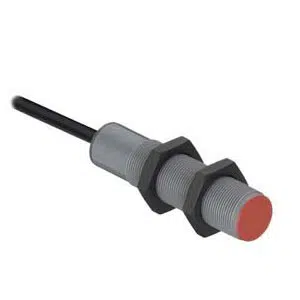

Leuze LCS-2M12P-F03PNO-K020V Proximity Sensor
The Leuze LCS-2M12P-F03PNO-K020V proximity sensor offers 1–3 mm sensing distance, PNP NO output, and 10–30 V DC supply operation. This LCS-2M12P-F03PNO-K020V Leuze 12mm Embedded Capacitive Sensor from Leuze supports 200 mA rated operating current, 100 Hz switching frequency, embedded cylindrical installation, and IP67 protection, is part of the Leuze Proximity Sensor category, and belongs to the LCS Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-2M12P-F03PNO-K020V |
Leuze LCS-2M12P-F03PNO-K020V Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-2 Series |
| Sensing Distance | 1 ... 3 mm |
| Assured switching distance | 2.4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PVC,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 55 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | - |
The LCS-2M12P-F03PNO-K020V Leuze 12mm Embedded Capacitive Sensor is a proximity sensor designed for precise capacitive detection in industrial automation systems. It operates with a 1–3 mm sensing distance, PNP normally open output, and a 10–30 V DC supply. This model belongs to the LCS series and is used where embedded installation and stable switching are required.
The LCS-2M12P-F03PNO-K020V Leuze 12mm Embedded Capacitive Sensor is commonly applied in conveyors, packaging machines, automated assembly lines, and material handling equipment. Its embedded cylindrical M12 design enables flush mounting in compact spaces. Adjustable sensitivity and stable output support reliable detection during continuous industrial operation.
The LCS-2M12P-F03PNO-K020V proximity sensor from Leuze delivers consistent performance with IP67 environmental protection and defined electrical characteristics. As part of the LCS series, it supports dependable operation in industrial automation environments. The PNP normally open switching principle ensures predictable capacitive sensing behavior.
