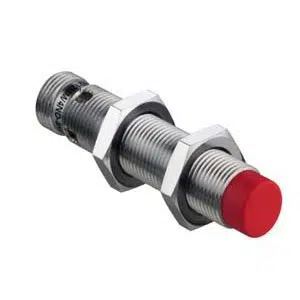

LCS-2M12B-N06PNC-M12: 50136574 - Leuze M12 NC Capacitive Switch
Technical Specifications of Leuze LCS-2M12B-N06PNC-M12 50136574:
| Design | Cylindrical |
| Sensing Distance | 1 ... 6 mm |
| Switching Output | Transistor, PNP |
| Switching Principle | NC (normally closed) |
Leuze M12 NC Capacitive Switch LCS-2M12B-N06PNC-M12, 50136574 Technical Specifications:
| Specification | Value |
|---|---|
| Series | LCS-2 |
| Sensing Distance | 1 ... 6 mm |
| Assured switching distance | 4.9 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 10 mA |
| Rated operating current | 200 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Γ x L) | 12 mm x 68 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze M12 NC Capacitive Switch LCS-2M12B-N06PNC-M12 part no: 50136574 with cost-effective solutions. Essential Technical Specs of LCS-2M12B-N06PNC-M12, 50136574 are LCS-2 series, 1 ... 6 mm sensing distance, 4.9 mm switching distance, 10 ... 30 V, DC power supply, 200 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NC (normally closed) output, 100 Hz switching frequency, M12 Connector, 4 -pin, Cylindrical, 12 mm x 68 mm dimension, Embedded, Metal, 1 Piece(s) LEDs, Multiturn potentiometer operational controls, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze M12 NC Capacitive Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
