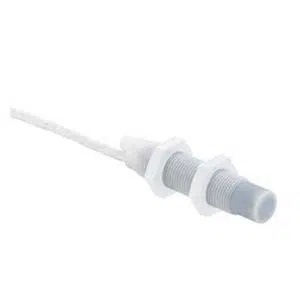

Leuze LCS-1M30T-N30NNO-K020T Proximity Sensor
The Leuze LCS-1M30T-N30NNO-K020T proximity sensor provides 2–30 mm sensing distance with NPN NO output using 10–30 V DC supply. This LCS-1M30T-N30NNO-K020T Leuze M30 NPN NO Capacitive Sensor from Leuze supports 100 mA rated operating current, PTFE cable 2,000 mm connection, IP67 protection, and a cylindrical non-embedded plastic housing with adjustable sensitivity, is part of the Leuze Proximity Sensor range, and belongs to the LCS-1 Series for capacitive sensing applications.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30T-N30NNO-K020T |
Leuze LCS-1M30T-N30NNO-K020T Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 30 mm |
| Assured switching distance | 30 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PTFE,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 72 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Teflon (PTFE) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -30 ... 70 °C |
| Degree of protection | IP 67 |
| Weight | 142 g |
The LCS-1M30T-N30NNO-K020T Leuze M30 NPN NO Capacitive Sensor is a proximity sensor designed for capacitive object detection in industrial automation systems. This model operates with a 2–30 mm sensing distance, 10–30 V DC supply, and a NPN normally open output to support defined switching behavior. It belongs to the LCS-1 series and is used where controlled non-contact sensing is required.
The LCS-1M30T-N30NNO-K020T Leuze M30 NPN NO Capacitive Sensor is applied in conveyors, packaging machinery, automated assembly lines, and material handling equipment. Its non-embedded M30 cylindrical design enables stable detection without physical contact. Adjustable sensitivity supports consistent output across changing installation and environmental conditions in industrial automation setups.
The LCS-1M30T-N30NNO-K020T proximity sensor from Leuze combines defined electrical characteristics with PTFE cable insulation and IP67-rated protection. As part of the LCS-1 series, it supports reliable operation under industrial temperature and environmental conditions. Its controlled sensing range and switching logic make it suitable for automation systems requiring dependable capacitive proximity detection.
