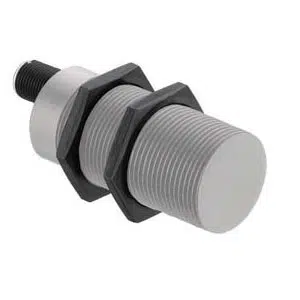

Leuze LCS-1M30P-N25NNO-K020P Proximity Sensor
The Leuze LCS-1M30P-N25NNO-K020P proximity sensor provides 1–25 mm sensing distance with NPN NO output using 10–30 V DC supply. This LCS-1M30P-N25NNO-K020P Leuze M30 3-wire Capacitive Sensor from Leuze supports 100 mA rated operating current, PUR cable 2,000 mm connection, IP67 protection, and a cylindrical plastic housing with adjustable sensitivity, is categorized under the Leuze Proximity Sensor range, and belongs to the LCS-1 Series for non-embedded capacitive sensing.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-N25NNO-K020P |
Leuze LCS-1M30P-N25NNO-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 25 mm |
| Assured switching distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 66.5 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 99 g |
The LCS-1M30P-N25NNO-K020P Leuze M30 3-wire Capacitive Sensor is a proximity sensor used for non-contact detection in industrial automation systems. This device operates with a 1–25 mm sensing distance, uses a 10–30 V DC supply, and provides a NPN normally open output for defined switching behavior. It belongs to the LCS-1 series and is applied in capacitive sensing tasks across industrial environments.
This sensor is used in conveyors, packaging machinery, automated assembly lines, and material handling systems. Its non-embedded M30 cylindrical design enables reliable object detection without mechanical contact. Adjustable sensitivity and a defined switching frequency help maintain stable output signals, supporting consistent operation in continuous industrial automation processes.
The LCS-1M30P-N25NNO-K020P proximity sensor from Leuze combines defined electrical parameters with a standardized mechanical structure for industrial use. With IP67 protection, fixed cable connectivity, and stable switching characteristics, this LCS-1 series model supports dependable long-term integration. Its repeatable sensing behavior makes it suitable for industrial automation applications requiring reliable capacitive detection.
