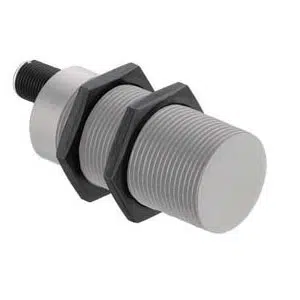

Leuze LCS-1M30P-F15PNC-K020P Proximity Sensor
Leuze LCS-1M30P-F15PNC-K020P proximity sensor provides 2–15 mm sensing distance, PNP NC output, 10–30 V DC supply for embedded installation. This Leuze 30mm NC Capacitive Sensor LCS-1M30P-F15PNC-K020P from Leuze belongs to the Proximity Sensor category and the LCS-1 Series. It supports cylindrical M30 design, adjustable sensitivity via potentiometer, PUR cable connection, and IP67 protection for industrial automation environments.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-F15PNC-K020P |
Leuze LCS-1M30P-F15PNC-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 66.5 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 100 g |
The Leuze 30mm NC Capacitive Sensor LCS-1M30P-F15PNC-K020P is a proximity sensor designed for non-contact detection in industrial automation systems. The LCS-1M30P-F15PNC-K020P operates with a 2–15 mm sensing distance, PNP normally closed output, 100 mA rated operating current, and 10–30 V DC supply. It belongs to the LCS series and is used in embedded mounting applications across industrial machinery.
This proximity sensor is applied in conveyors, packaging machines, automated assembly lines, and material handling systems. The cylindrical M30 threaded housing supports secure mechanical mounting, while the PUR cable ensures stable signal transmission. Adjustable sensitivity enables consistent switching behavior when detecting different materials under varying environmental conditions.
The Leuze LCS-1M30P-F15PNC-K020P proximity sensor delivers defined electrical performance and environmental protection for continuous industrial use. Its sensing range, switching principle, and compact housing support predictable integration into control systems. As part of the Leuze LCS-series, this model is suitable for industrial automation applications requiring reliable and repeatable capacitive sensing.
