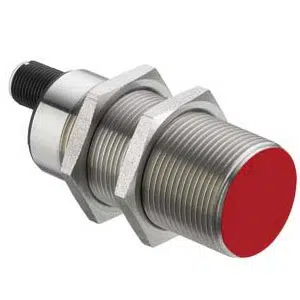

Leuze LCS-1M30M-N25PNC-K020P Proximity Sensor
The Leuze LCS-1M30M-N25PNC-K020P proximity sensor provides 1–25 mm sensing distance with PNP NC output using 10–30 V DC supply. This Leuze 25mm PNP Capacitive Sensor LCS-1M30M-N25PNC-K020P from Leuze supports 100 mA rated operating current, PUR cable 2,000 mm connection, IP67 protection, and M30 stainless steel cylindrical housing with adjustable sensitivity, is classified under the Leuze Proximity Sensor category, and belongs to the LCS-1 Series for non-embedded capacitive sensing.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30M-N25PNC-K020P |
Leuze LCS-1M30M-N25PNC-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 25 mm |
| Assured switching distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 66.5 mm |
| Type of installation | Non-embedded |
| Housing material | Metal Stainless steel |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 150 g |
The LCS-1M30M-N25PNC-K020P Leuze 25mm PNP Capacitive Sensor is a proximity sensor designed for non-contact detection in industrial automation systems. This model operates with a 1–25 mm sensing distance, uses a 10–30 V DC supply, and provides a PNP normally closed output for defined switching behavior. It is part of the LCS-1 series and is intended for stable capacitive sensing applications in industrial environments.
The LCS-1M30M-N25PNC-K020P Leuze 25mm PNP Capacitive Sensor is applied in conveyors, packaging machinery, automated assembly lines, and material handling systems. Its non-embedded M30 cylindrical design allows reliable object detection without mechanical contact. Adjustable sensitivity and a controlled switching frequency support consistent output signals, helping maintain predictable operation in continuous automation and production processes.
The LCS-1M30M-N25PNC-K020P proximity sensor from Leuze combines defined electrical characteristics with a robust mechanical structure for industrial use. With IP67 protection, stainless steel housing, and stable switching performance, this LCS-1 series sensor is suitable for long-term operation in automation systems. Its clear specifications and repeatable sensing behavior support dependable integration into industrial control applications.
