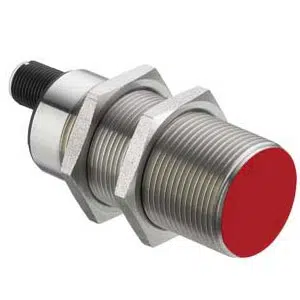

Leuze LCS-1M30M-N25NNO-K020P Proximity Sensor
The Leuze LCS-1M30M-N25NNO-K020P proximity sensor provides 1–25 mm sensing distance with NPN NO output using 10–30 V DC supply. This LCS-1M30M-N25NNO-K020P Leuze 25mm NPN Capacitive Sensor from Leuze supports 100 mA rated operating current, PUR cable 2,000 mm connection, IP67 protection, and M30 stainless steel cylindrical housing with adjustable sensitivity, is categorized under the Leuze Proximity Sensor range, and belongs to the LCS-1 Series for non-embedded capacitive sensing.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30M-N25NNO-K020P |
Leuze LCS-1M30M-N25NNO-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 25 mm |
| Assured switching distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 66.5 mm |
| Type of installation | Non-embedded |
| Housing material | Metal Stainless steel |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 150 g |
The LCS-1M30M-N25NNO-K020P Leuze 25mm NPN Capacitive Sensor is a proximity sensor designed for non-contact object detection in industrial automation systems. This model operates with a 1–25 mm sensing distance, uses a 10–30 V DC supply, and provides a NPN normally open output for defined switching behavior. It belongs to the LCS-1 series and is used in capacitive sensing applications across industrial environments.
The LCS-1M30M-N25NNO-K020P Leuze 25mm NPN Capacitive Sensor is applied in conveyors, packaging machines, automated assembly lines, and material handling systems. Its non-embedded M30 cylindrical design supports reliable detection without mechanical contact. Adjustable sensitivity and controlled switching frequency help maintain stable output signals, supporting consistent operation in continuous automation processes.
The LCS-1M30M-N25NNO-K020P proximity sensor from Leuze combines defined electrical parameters with a stainless steel housing for industrial use. With IP67 protection, stable switching characteristics, and clear operating limits, this LCS-1 series sensor supports dependable long-term integration. Its repeatable sensing behavior and standardized connection make it suitable for industrial automation installations requiring reliable capacitive detection.
