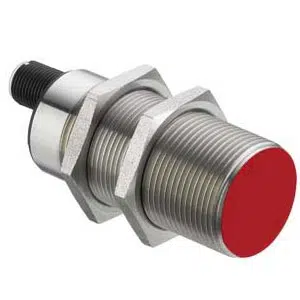

Leuze LCS-1M30M-F15NNO-K020P Proximity Sensor
The Leuze LCS-1M30M-F15NNO-K020P proximity sensor delivers 2β15 mm sensing distance, NPN NO output, 10β30 V DC supply operation capability. This Leuze 15mm NPN Capacitive Sensor LCS-1M30M-F15NNO-K020P from Leuze is classified under Proximity Sensor products and the LCS-1 Series. It features a stainless steel M30 cylindrical housing, 3-wire PUR cable, embedded installation, adjustable sensitivity, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30M-F15NNO-K020P |
Leuze LCS-1M30M-F15NNO-K020P Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Γ x L) | 30 mm x 66.5 mm |
| Type of installation | Embedded |
| Housing material | Metal, Stainless steel |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 156 g |
The Leuze 15mm NPN Capacitive Sensor LCS-1M30M-F15NNO-K020P is a proximity sensor designed for contactless detection in industrial automation systems. The LCS-1M30M-F15NNO-K020P operates with a 2β15 mm sensing distance, NPN normally open switching, 100 mA rated operating current, and 10β30 V DC supply. It belongs to the LCS series from Leuze and supports embedded installation in industrial environments.
This proximity sensor is used in conveyors, packaging machines, automated assembly lines, and material handling systems. The M30 stainless steel housing ensures mechanical stability, while the fixed PUR cable provides consistent signal transmission. Adjustable sensitivity allows reliable detection across varying materials, supporting stable output in continuous automation processes.
The Leuze LCS-1M30M-F15NNO-K020P proximity sensor combines defined electrical behavior with durable construction for industrial use. Its sensing range, switching logic, and environmental protection support predictable system integration. As part of the Leuze LCS series, this model is suitable for long-term operation in demanding industrial automation applications.
