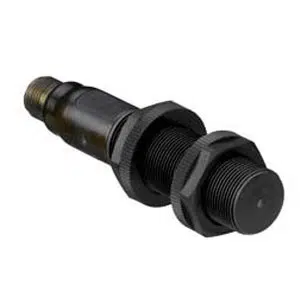

Leuze LCS-1M18P-F05NNP-M12-LT Proximity Sensor
The Leuze LCS-1M18P-F05NNP-M12-LT Proximity Sensor (Part No: 50135721 ) offers a 1 ... 5 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN Normally closed contact (NC)/normally open contact (NO), programmable output, M12 Connector connection, 5 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the LCS Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M18P-F05NNP-M12-LT |
Leuze LCS-1M18P-F05NNP-M12-LT Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 5 mm |
| Assured switching distance | 1 ... 7.5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | Normally closed contact (NC)/normally open contact (NO), programmable |
| Switching frequency | 10 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 5 -pin |
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Γ x L) | 18 mm x 87.3 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
| Weight | 40 g |
IndMALL Automation Dealing offers Leuze NPN Capacitive Sensor LCS-1M18P-F05NNP-M12-LT part no: 50135721 at attractive prices. Key Technical Features of LCS-1M18P-F05NNP-M12-LT, 50135721 are LCS-1 series, 1 ... 5 mm sensing distance, 1 ... 7.5 mm switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, Normally closed contact (NC)/normally open contact (NO), programmable output, 10 Hz switching frequency, M12 Connector, 5 -pin, Cylindrical, 18 mm x 87.3 mm dimension, Embedded, Plastic, 2 Piece(s) LEDs, Multiturn potentiometer (12 turns) operational controls, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze NPN Capacitive Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
