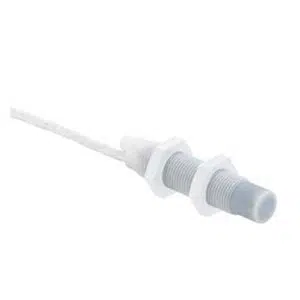

Leuze LCS-1M12T-N08NNO-K020T Proximity Sensor
Leuze LCS-1M12T-N08NNO-K020T proximity sensor offers 1–8 mm sensing distance NPN normally open output and 12–35 V DC supply voltage. This LCS-1M12T-N08NNO-K020T Leuze PTFE Material Capacitive Sensor is manufactured by Leuze as a Proximity Sensor in the LCS-1 Series, supporting 100 Hz switching frequency, non-embedded installation, cylindrical M12 housing, adjustable sensitivity, and IP65 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12T-N08NNO-K020T |
Leuze LCS-1M12T-N08NNO-K020T Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 8 mm |
| Assured switching distance | 8 mm |
| Supply Voltage | 12 ... 35 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PTFE,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 53 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Teflon (PTFE) |
| Number of LEDs | 1 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -30 ... 70 °C |
| Degree of protection | IP 65 |
| Weight | 77 g |
The LCS-1M12T-N08NNO-K020T Leuze PTFE Material Capacitive Sensor is a proximity sensor designed for industrial automation environments. The LCS-1M12T-N08NNO-K020T operates with a 1–8 mm sensing distance, NPN normally open transistor output, 12–35 V DC supply voltage, and 100 Hz switching frequency. It belongs to the LCS-1 Series and supports capacitive detection tasks where stable short-range sensing is required.
This proximity sensor is applied in conveyors, packaging machinery, automated assembly lines, and production equipment. Non-embedded installation ensures predictable sensing behavior, while PTFE cable insulation supports reliable operation in demanding environments. Adjustable sensitivity enables fine tuning for different materials and process conditions, maintaining consistent signal output.
The Leuze LCS-1M12T-N08NNO-K020T proximity sensor provides dependable electrical characteristics and mechanical stability for industrial use. Defined sensing range, controlled NPN NO switching, and IP65 enclosure support continuous operation. As part of the Leuze LCS proximity sensor range, this model is suitable for capacitive sensing applications requiring reliable detection and stable performance.
