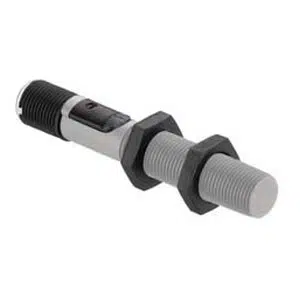

Leuze LCS-1M12P-N08PNO-M12 Proximity Sensor
Leuze LCS-1M12P-N08PNO-M12 proximity sensor offers 1–8 mm sensing distance, PNP normally open output, 10–30 V DC supply with M12 connector. This LCS-1M12P-N08PNO-M12 Leuze 75mm Length Capacitive Sensor from Leuze is a Proximity Sensor in the LCS-1 Series. It supports 100 Hz switching frequency, non-embedded cylindrical housing, adjustable sensitivity, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12P-N08PNO-M12 |
Leuze LCS-1M12P-N08PNO-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 8 mm |
| Assured switching distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 75 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 12 g |
The LCS-1M12P-N08PNO-M12 Leuze 75mm Length Capacitive Sensor is a non-embedded proximity sensor designed for industrial automation. The LCS-1M12P-N08PNO-M12 operates with a 1–8 mm sensing distance, PNP normally open output, 10–30 V DC supply voltage, and 100 Hz switching frequency. It belongs to the LCS-1 Series and is used for consistent short-range detection tasks.
This proximity sensor is applied in conveyors, packaging machines, automated assembly lines, and material handling systems. Capacitive sensing enables detection of different materials, while the cylindrical M12 design supports straightforward installation. Adjustable sensitivity helps maintain stable switching behavior in environments with temperature variation, dust, or vibration.
The Leuze LCS-1M12P-N08PNO-M12 proximity sensor provides defined electrical characteristics and mechanical protection for industrial use. IP67 enclosure rating, predictable PNP NO switching, and controlled sensing distance support reliable operation. As part of the Leuze LCS family, this model is suitable for automation systems requiring dependable non-embedded capacitive sensing.
