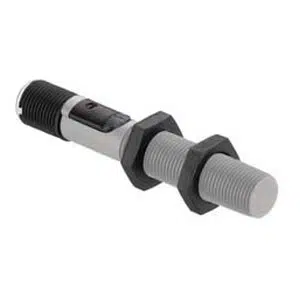

Leuze LCS-1M12P-N08NNO-K020P Proximity Sensor
Leuze LCS-1M12P-N08NNO-K020P proximity sensor provides 1–8 mm sensing distance, NPN normally open output, and 10–30 V DC supply voltage. This LCS-1M12P-N08NNO-K020P Leuze PUR Cable NPN Cylidrical Sensor from Leuze is a Proximity Sensor within the LCS-1 Series. It supports 100 Hz switching frequency, cylindrical M12 housing, non-embedded installation, adjustable sensitivity, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12P-N08NNO-K020P |
Leuze LCS-1M12P-N08NNO-K020P Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 8 mm |
| Assured switching distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 61 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 43 g |
The LCS-1M12P-N08NNO-K020P Leuze PUR Cable NPN Cylidrical Sensor is a non-embedded proximity sensor used in industrial automation. The LCS-1M12P-N08NNO-K020P operates with a 1–8 mm sensing distance, NPN normally open output, 10–30 V DC supply voltage, and 100 Hz switching frequency. It belongs to the LCS-1 Series and supports short-range capacitive detection tasks.
This proximity sensor is applied in conveyors, packaging machines, automated assembly lines, and material handling systems. Capacitive sensing enables stable detection of various materials, while the cylindrical M12 design supports compact mounting. The PUR cable connection and adjustable sensitivity allow consistent switching performance in demanding industrial environments.
The Leuze LCS-1M12P-N08NNO-K020P proximity sensor delivers predictable electrical behavior and reliable operation under industrial conditions. IP67 protection, defined NO switching logic, and controlled sensing distance support dependable automation processes. As part of the Leuze LCS series, this model is suitable for applications requiring consistent non-embedded capacitive sensing.
