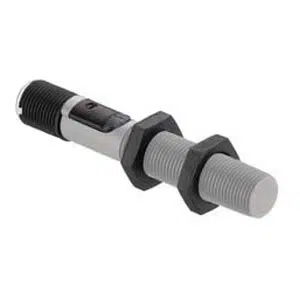

Leuze LCS-1M12P-F04NNO-M12 Proximity Sensor
The Leuze LCS-1M12P-F04NNO-M12 Proximity Sensor (Part No: 50135698 ) offers a 1 ... 4 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the LCS Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12P-F04NNO-M12 |
Leuze LCS-1M12P-F04NNO-M12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 4 mm |
| Assured switching distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Γ x L) | 12 mm x 75 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 13 g |
Reach Us by Email for Leuze 4mm Embedded Capacitive Sensor LCS-1M12P-F04NNO-M12 part no: 50135698 at Discounted Rates. Key Technical Features of LCS-1M12P-F04NNO-M12, 50135698 are LCS-1 series, 1 ... 4 mm sensing distance, 4 mm switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, NPN, NO (normally open) output, 100 Hz switching frequency, M12 Connector, 4 -pin, Cylindrical, 12 mm x 75 mm dimension, Embedded, Plastic, 2 Piece(s) LEDs, Multiturn potentiometer (12 turns) operational controls, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 4mm Embedded Capacitive Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
