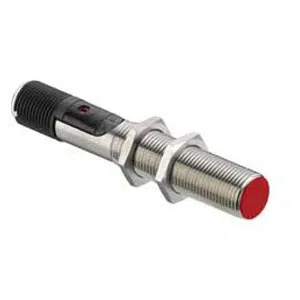

Leuze LCS-1M12M-N08PNO-K020P Proximity Sensor
The Leuze LCS-1M12M-N08PNO-K020P Proximity Sensor (Part No: 50135751 ) offers a 1 ... 8 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, PUR,Cable 2,000 mm Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the LCS Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12M-N08PNO-K020P |
Leuze LCS-1M12M-N08PNO-K020P Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 8 mm |
| Assured switching distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Γ x L) | 12 mm x 61 mm |
| Type of installation | Non-embedded |
| Housing material | Metal Stainless steel |
| Cover material | Plastic, Polybutylene (PBT) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 61 g |
Give Us a Call for Leuze 61mm Sensing Capacitive Sensor LCS-1M12M-N08PNO-K020P part no: 50135751 at the lowest pricing. In-depth Technical Analysis of LCS-1M12M-N08PNO-K020P, 50135751 feature LCS-1 series, 1 ... 8 mm sensing distance, 8 mm switching distance, 10 ... 30 V, DC power supply, 100 mA operating current, 1 Piece(s) digital switching output, Transistor, PNP, NO (normally open) output, 100 Hz switching frequency, PUR,Cable 2,000 mm Length, 3 -wire, Cylindrical, 12 mm x 61 mm dimension, Non-embedded, Metal Stainless steel, 2 Piece(s) LEDs, Multiturn potentiometer (20 turns) operational controls, IP 67 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze 61mm Sensing Capacitive Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
