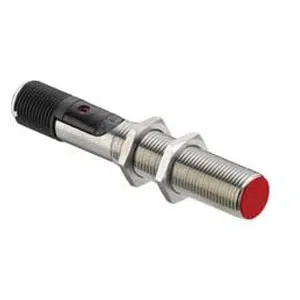

Leuze LCS-1M12M-N08NNC-M12 Proximity Sensor
Leuze LCS-1M12M-N08NNC-M12 proximity sensor offers 1–8 mm sensing distance, NPN normally closed output, and 10–30 V DC supply voltage. This LCS-1M12M-N08NNC-M12 Leuze Non-embedded Capacitive Sensor from Leuze is a Proximity Sensor in the LCS-1 Series. It supports 100 Hz switching frequency, non-embedded M12 stainless steel housing, adjustable sensitivity, and IP67 protection.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12M-N08NNC-M12 |
Leuze LCS-1M12M-N08NNC-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 8 mm |
| Assured switching distance | 8 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Ø x L) | 12 mm x 75 mm |
| Type of installation | Non-embedded |
| Housing material | Metal Stainless steel |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 25 g |
The LCS-1M12M-N08NNC-M12 Leuze Non-embedded Capacitive Sensor is designed for stable capacitive detection in industrial automation environments. The LCS-1M12M-N08NNC-M12 operates with a 1–8 mm sensing distance, NPN normally closed output, 10–30 V DC supply range, and 100 Hz switching frequency. It belongs to the LCS series and is used where controlled, short-range capacitive sensing is required.
This proximity sensor is commonly applied in conveyors, packaging machines, automated assembly systems, and material handling lines. Its non-embedded cylindrical M12 design allows flexible mounting, while capacitive sensing enables consistent detection of materials. Adjustable sensitivity supports stable switching behavior in varying installation conditions.
The Leuze LCS-1M12M-N08NNC-M12 proximity sensor combines defined electrical characteristics with durable construction. Stainless steel housing, predictable NC output behavior, and IP67 protection support reliable long-term operation. As part of the Leuze LCS series, this model is suitable for industrial automation applications requiring dependable non-embedded capacitive sensing.
