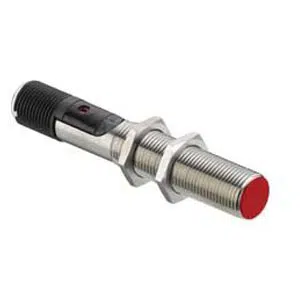

Leuze LCS-1M12M-F04PNO-K020P Proximity Sensor
The Leuze LCS-1M12M-F04PNO-K020P proximity sensor provides 1 to 4 mm sensing distance, PNP NO output, 10β30 V DC supply. This Leuze PUR 2M Cable Capacitive Sensor from the Leuze Proximity Sensor portfolio belongs to the LCS-1 Series and supports embedded installation, cylindrical M12 design, adjustable sensitivity, IP67 protection, and stable switching for industrial automation.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M12M-F04PNO-K020P |
Leuze LCS-1M12M-F04PNO-K020P Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 1 ... 4 mm |
| Assured switching distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching principle | NO (normally open) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | PUR,Cable 2,000 mm Length |
| No. of pins | 3 -wire |
| Design | Cylindrical |
| Thread size | M12 x 1 mm |
| Dimension (Γ x L) | 12 mm x 61 mm |
| Type of installation | Embedded |
| Housing material | Metal, Stainless steel |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (12 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 Β°C |
| Degree of protection | IP 67 |
| Weight | 59 g |
The LCS-1M12M-F04PNO-K020P Leuze PUR 2M Cable Capacitive Sensor is a proximity sensor used for short-range detection in industrial automation systems. The LCS-1M12M-F04PNO-K020P operates with a 4 mm assured switching distance, PNP normally open output, 100 Hz switching frequency, and IP67 degree of protection. It belongs to the Leuze LCS series and is designed for applications requiring direct cable connection and consistent sensing behavior.
This proximity sensor is applied in conveyors, packaging machinery, automated assembly lines, and material handling equipment. The PUR 2 m cable allows flexible routing without additional connectors, supporting stable electrical connections in moving or compact machine layouts. Its stainless-steel cylindrical housing enables embedded mounting, while adjustable sensitivity helps maintain reliable detection under varying environmental and material conditions.
The Leuze LCS-1M12M-F04PNO-K020P proximity sensor combines defined sensing distance, durable mechanical construction, and stable output performance. With its wide operating voltage range, IP67 protection, and resistance to industrial contaminants, it integrates reliably into control systems. As part of the Leuze LCS series, this model reflects consistent sensor design suited for continuous operation in industrial automation environments.
