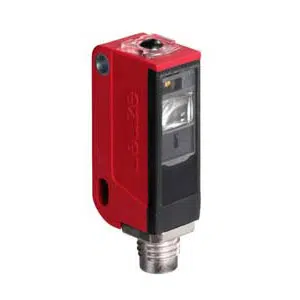

Leuze KRTW 3B/6.1321-S8 Contrast Sensor
The Leuze KRTW 3B/6.1321-S8 Contrast Sensor offers a Cubic
design, Transistor, Push-pull output, M8, Connector, 4-pin. Manufactured by Leuze under the Leuze Contrast Sensor category, this model belongs to the KRT Series.
| Brand | Leuze |
| Product Type | Contrast Sensor |
| Product | KRTW 3B/6.1321-S8 |
Leuze KRTW 3B/6.1321-S8 Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 11 mm x 32 mm x 17 mm |
| Special version | Teach input Time function |
| Operating range | 14.5 mm Β± 2 mm |
| Beam path | Focused |
| Light Source | LED, White |
| Light spot size [at sensor distance] | 1.5 mm x 4 mm |
| Light spot orientation | Vertical |
| Type of light spot geometry | Rectangular |
| Light beam exit | Front |
| Wavelength | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 10,000 Hz |
| Response time | - |
| Con:1 Function | - |
| Type of connection | Connector |
| Thread size | M8 |
| Type | - |
| Material | Metal |
| No. of pins | 4-pin |
| Housing material | Plastic |
| Housing color | - |
| Type of fastening | - |
| Type of display | - |
| Operational controls | Teach button |
| Ambient temperature, operation | -30 ... 55 Β°C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
IndMALL Offers Leuze Plastic Housing Material Contrast Sensor KRTW 3B/6.1321-S8 part no: 50111320 at unbeatable prices. Component Specifications of KRTW 3B/6.1321-S8 are Cubic Design, 11 mm x 32 mm x 17 mm Dimensions, 14.5 mm Β± 2 mm Operating Range, LED, White Light Source, 1.5 mm x 4 mm Light Spot Size, 10 ... 30 V, DC Supply Voltage, Transistor, Push-pull switching output, 10,000 Hz Switching Frequency, Connector, M8, 4-pin, Teach button Operational Controls, Plastic Housing Material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze Plastic Housing Material Contrast Sensor.
