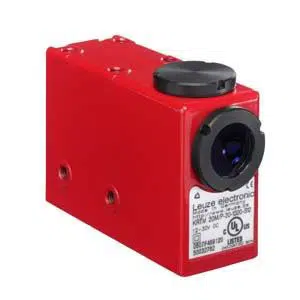

Leuze KRTM 20M/V-12-0004-S12 Contrast Sensor
The Leuze KRTM 20M/V-12-0004-S12 Contrast Sensor offers a Cubic
design, Transistor, PNP output, M12, Connector, 5-pin. Manufactured by Leuze under the Leuze Contrast Sensor category, this model belongs to the KRT Series.
| Brand | Leuze |
| Product Type | Contrast Sensor |
| Product | KRTM 20M/V-12-0004-S12 |
Leuze KRTM 20M/V-12-0004-S12 Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 30 mm x 80 mm x 53 mm |
| Special version | Autocollimation Crop mark system Time function |
| Operating range | 12 mm Β± 1 mm |
| Beam path | Focused |
| Light Source | LED, RGB |
| Light spot size [at sensor distance] | 1.2 mm x 4 mm |
| Light spot orientation | Vertical |
| Type of light spot geometry | Rectangular |
| Light beam exit | On face |
| Wavelength | - |
| Supply voltage UB | 12 ... 30 V, DC |
| Number of teach inputs | - |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 16,000 Hz |
| Response time | - |
| Con:1 Function | - |
| Type of connection | Connector |
| Thread size | M12 |
| Type | - |
| Material | Stainless steel |
| No. of pins | 5-pin |
| Housing material | Metal |
| Housing color | - |
| Type of fastening | - |
| Type of display | LED |
| Operational controls | Membrane keyboard Via service interface |
| Ambient temperature, operation | -25 ... 60 Β°C |
| Degree of protection | IP 67 IP 69K |
Mail us for Leuze Protocol Interface Contrast Sensor KRTM 20M/V-12-0004-S12 part no: 50133896 with budget-friendly prices. Technical Details of KRTM 20M/V-12-0004-S12 feature Cubic Design, 30 mm x 80 mm x 53 mm Dimensions, 12 mm Β± 1 mm Operating Range, LED, RGB Light Source, 1.2 mm x 4 mm Light Spot Size, - wavelength, 12 ... 30 V, DC Supply Voltage , Transistor, PNP switching output, 16,000 Hz Switching Frequency, Connector, M12, 5-pin, LED display, Membrane keyboard Via service interface Operational Controls, MetalHousing Material, IP 67 IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze Protocol Interface Contrast Sensor.
