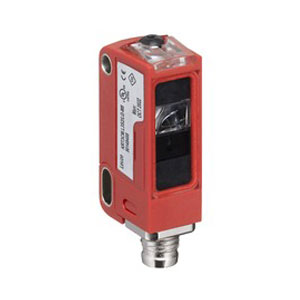

Leuze KRT3CW.L3S1/6T-M8 Contrast Sensor
The Leuze KRT3CW.L3S1/6T-M8 Contrast Sensor offers a Cubic
design, Transistor, Push-pull output, M8, Connector, 4 -pin
. Manufactured by Leuze under the Leuze Contrast Sensor category, this model belongs to the KRT Series.
| Brand | Leuze |
| Product Type | Contrast Sensor |
| Product | KRT3CW.L3S1/6T-M8 |
Leuze KRT3CW.L3S1/6T-M8 Contrast Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Special version | Teach input Time function |
| Operating range | 14.5 mm ± 2 mm |
| Beam path | Focused |
| Light Source | LED, White |
| Light spot size [at sensor distance] | 1.5 mm x 4 mm [14.5 mm] |
| Light spot orientation | Vertical |
| Type of light spot geometry | Rectangular |
| Light beam exit | Front |
| Wavelength | 400 ... 750 nm |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Con:1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Housing material | Plastic |
| Housing color | Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 IP 69K |
Obtain a Quote for Leuze Transistor Push-pull Output Contrast Sensor KRT3CW.L3S1/6T-M8 part no: 50148508 at economical prices. Specifications Overview for KRT3CW.L3S1/6T-M8, feature Cubic Design, 11.4 mm x 34.2 mm x 18.3 mm Dimensions, 14.5 mm ± 2 mm Operating Range, LED, White Light Source, 1.5 mm x 4 mm [14.5 mm] Light Spot Size, 400 ... 750 nm wavelength, 12 ... 30 V, DC, Incl. residual ripple Supply Voltage , Transistor, Push-pull switching output, 10,000 Hz Switching Frequency, Connector, M8, 4 -pin , LED display, Teach button Operational Controls, Plastic Housing Material, Red Housing Color, IP 67 IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze Transistor Push-pull Output Contrast Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
