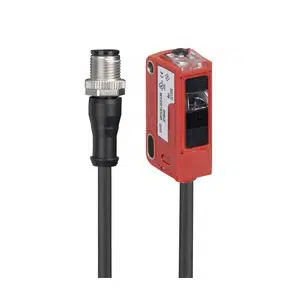

Leuze KRT3CW.L3S1/4T-200-M12 Contrast Sensor
The Leuze KRT3CW.L3S1/4T-200-M12 Contrast Sensor offers a Cubic
design, Transistor, PNP output, 200 mm, Cable with connector. Manufactured by Leuze under the Leuze Contrast Sensor category, this model belongs to the KRT Series.
| Design | Cubic |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Operating Range | 14.5 mm Β± 2 mm |
Leuze KRT3CW.L3S1/4T-200-M12 Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Special version | Teach input Time function |
| Operating range | 14.5 mm Β± 2 mm |
| Beam path | Focused |
| Light Source | LED, White |
| Light spot size [at sensor distance] | 1.5 mm x 4 mm [14.5 mm] |
| Light spot orientation | Vertical |
| Type of light spot geometry | Rectangular |
| Light beam exit | Front |
| Wavelength | 400 ... 750 nm |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Con:1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Number of conductors | - |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Housing material | Plastic |
| Housing color | Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 IP 69K |
Call us for Leuze Cable with Connector, M12 Contrast Sensor KRT3CW.L3S1/4T-200-M12 part no: 50148510 at the best rates. Technical Attributes of KRT3CW.L3S1/4T-200-M12 feature Cubic Design, 11.4 mm x 34.2 mm x 18.3 mm Dimensions, 14.5 mm Β± 2 mm Operating Range, LED, White Light Source, 1.5 mm x 4 mm [14.5 mm] Light Spot Size, 400 ... 750 nm wavelength, 12 ... 30 V, DC, Incl. residual ripple Supply Voltage , Transistor, PNP switching output, 10,000 Hz Switching Frequency, Cable with connector, M12, 4 -pin, LED display, Teach button Operational Controls, Plastic Housing Material, Red Housing Color, IP 67 IP 69K degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze Cable with Connector, M12 Contrast Sensor.
