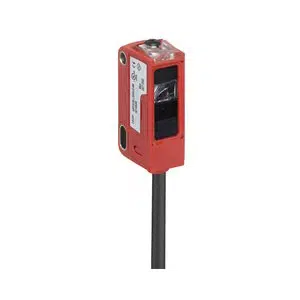

Leuze KRT3CL1.3S2/4T Contrast Sensor
The Leuze KRT3CL1.3S2/4T Contrast Sensor offers a Cubic
design, Transistor, PNP output, 2,000 mm
, Cable. Manufactured by Leuze under the Leuze Contrast Sensor category, this model belongs to the KRT Series.
| Design | Cubic |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Operating Range | 60 mm Β± 20 mm |
Leuze KRT3CL1.3S2/4T Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Special version | Teach input Time function |
| Operating range | 60 mm Β± 20 mm |
| Beam path | Focused |
| Light Source | Laser, Red |
| Light spot size [at sensor distance] | 0.5 mm x 1 mm [60 mm] |
| Light spot orientation | Vertical |
| Type of light spot geometry | Oval |
| Light beam exit | Front |
| Wavelength | 655 nm |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 4,000 Hz |
| Response time | 300 ms |
| Con:1 Function | Signal OUT Teach input Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Number of conductors | 4-wire |
| Thread size | - |
| Type | - |
| Material | - |
| No. of pins | - |
| Housing material | Plastic |
| Housing color | Red |
| Type of fastening | Via optional mounting device |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 55 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 IP 69K |
Ask for the Pricing of Leuze 60 mm Transistor PNP Contrast Sensor KRT3CL1.3S2/4T part no: 50148500 at unbeatable prices. Detailed Specifications of KRT3CL1.3S2/4T, feature Cubic Design, 11.4 mm x 34.2 mm x 18.3 mm Dimensions, 60 mm Β± 20 mm Operating Range, Laser, Red Light Source, 0.5 mm x 1 mm [60 mm] Light Spot Size, 655 nm wavelength, 12 ... 30 V, DC, Incl. residual ripple Supply Voltage , Transistor, PNP switching output, 4,000 Hz Switching Frequency, Cable, LED display, Teach button Operational Controls, Plastic Housing Material, Red Housing Color, IP 67 IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 60 mm Transistor PNP Contrast Sensor.
