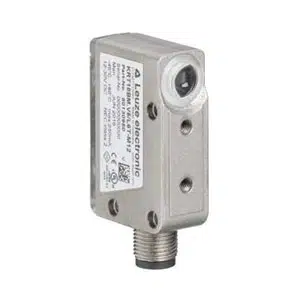

Leuze KRT18BM.V2/GV2T-M12 Contrast Sensor
The Leuze KRT18BM.V2/GV2T-M12 Contrast Sensor offers a Cubic
design, Transistor, Push-pull output, M12, Connector, 5-pin. Manufactured by Leuze under the Leuze Contrast Sensor category, this model belongs to the KRT Series.
| Brand | Leuze |
| Product Type | Contrast Sensor |
| Product | KRT18BM.V2/GV2T-M12 |
Leuze KRT18BM.V2/GV2T-M12 Contrast Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Dimension (W x H x L) | 15 mm x 47 mm x 32.5 mm |
| Special version | - |
| Operating range | 13 mm Β± 3 mm |
| Beam path | Focused |
| Light Source | LED, RGB |
| Light spot size [at sensor distance] | 1 mm x 4 mm |
| Light spot orientation | Vertical |
| Type of light spot geometry | Rectangular |
| Light beam exit | Front |
| Wavelength | - |
| Supply voltage UB | 12 ... 30 V, DC |
| Number of teach inputs | 1 Piece(s) |
| Number of digital switching outputs | 1 Piece(s) |
| Switching output | Transistor, Push-pull |
| Switching principle | Light/dark switchable |
| Switching frequency | 15,000 Hz |
| Response time | 300 ms |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5-pin |
| Housing material | Metal |
| Housing color | Silver |
| Type of fastening | Front mounting with thread Through-hole mounting Via optional mounting device |
| Type of display | Bar graph LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 IP 69K |
Send Your Inquiry for Leuze Analog Voltage Output Contrast Sensor KRT18BM.V2/GV2T-M12 part no: 50146156 at affordable rates. Core System Specifications of KRT18BM.V2/GV2T-M12 feature Cubic Design, 15 mm x 47 mm x 32.5 mm Dimensions, 13 mm Β± 3 mm Operating Range, LED, RGB Light Source, 1 mm x 4 mm Light Spot Size, 12 ... 30 V, DC Supply Voltage , Transistor, Push-pull switching output, 15,000 Hz Switching Frequency, Connector, M12, 5-pin, Bar graph LED display, Multiturn potentiometer Operational Controls, MetalHousing Material, Silver Housing Color, IP 67 IP 69K degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze Analog Voltage Output Contrast Sensor.
