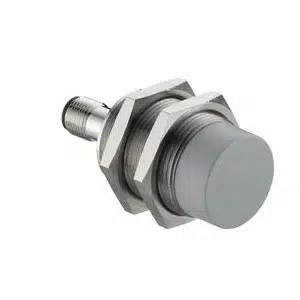

Leuze ISS 230MM/44-15N-S12 Proximity Sensor
The Leuze ISS 230MM/44-15N-S12 Proximity Sensor (Part No: ) offers a 15 mm sensing distance, 10 ... 36 V, DC supply voltage, Transistor, PNP NO contact β Antivalent output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 230MM/44-15N-S12 |
Leuze ISS 230MM/44-15N-S12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 230 Series |
| Sensing Distance | 15 mm |
| Supply Voltage | 10 ... 36 V, DC |
| Number of digital switching outputs | e Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.05 mA |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact β Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact β Antivalent |
| Switching frequency, max. | 1,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 30 mm x 67 mm |
| Type of installation | Non-embedded |
| Housing material | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Gray Silver |
| Standard measuring plate | 45 x 45 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -40 ... 70 Β°C Storage: -40 ... 80 Β°C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze M30 Unshielded Inductive Switch ISS 230MM/44-15N-S12 part no: 50141489 with cost-effective solutions. Essential Technical Specs of ISS 230MM/44-15N-S12, 50141489 are 230 series, 15 mm Sensing, 10 ... 36 V, DC power supply, e Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO contact β Antivalent output, 1,000 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 30 mm x 67 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Gray Silver color, IP 67 degree of protection. Capture the Best Deal with a Quote for your requirement of Leuze M30 Unshielded Inductive Switch. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
