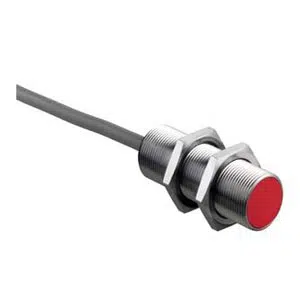

Leuze ISS 218MM/4NO-5E0 Proximity Sensor
The Leuze ISS 218MM/4NO-5E0 Proximity Sensor (Part No: ) offers a 5 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, PVC Cable, 2,000m Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 218MM/4NO-5E0 |
Leuze ISS 218MM/4NO-5E0 Proximity Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Series | 218 Series |
| Sensing Distance | 5 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | โค 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2,000m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (ร x L) | 18 mm x 35 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 18 x 18 mmยฒ, Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 ยฐC Operation: -25 ... 70 ยฐC |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 35mm PNP NO Inductive Switch ISS 218MM/4NO-5E0 part no: 50112915 at attractive prices. Technical Specs Summary of ISS 218MM/4NO-5E0, 50112915 includes 218 series, 5 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP, NO (normally open) output, 2,000 Hz, 1 Piece(s) Connection, PVC Cable, 2,000m Length, 3 -wire, Cylindrical, 18 mm x 35 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 35mm PNP NO Inductive Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
