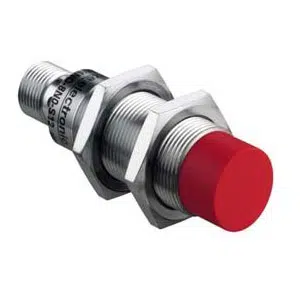

Leuze ISS 218MM/4NO-20N-S12 Proximity Sensor
The Leuze ISS 218MM/4NO-20N-S12 Proximity Sensor (Part No: ) offers a 20 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 218MM/4NO-20N-S12 |
Leuze ISS 218MM/4NO-20N-S12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 218 Series |
| Sensing Distance | 20 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 18 mm x 48.5 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 60 x 60 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 Β°C Operation: -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Call us for Leuze 20mm Sensing Inductive Switch ISS 218MM/4NO-20N-S12 part no: 50109710 at the best rates. Technical Attributes of ISS 218MM/4NO-20N-S12, 50109710 are218 series, 20 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP , NO (normally open) output 1, - , - output 2, 500 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 48.5 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection.Unlock Exclusive Pricing with a Quote for your requirement of Leuze 20mm Sensing Inductive Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
