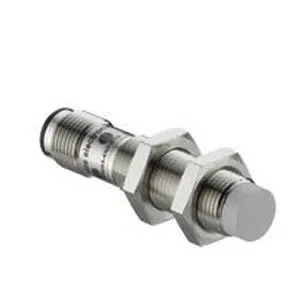

Leuze ISS 212MM/44-4N0-S12 Proximity Sensor
The Leuze ISS 212MM/44-4N0-S12 Proximity Sensor (Part No: ) offers a 4 mm sensing distance, 10 ... 36 V, DC supply voltage, Transistor, PNP NO contact β Antivalent NC contact β Antivalent output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 212MM/44-4N0-S12 |
Leuze ISS 212MM/44-4N0-S12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 212 Series |
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 36 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.05 mA |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, PNP |
| O/P 1: Switching Principle | NO contact β Antivalent NC contact β Antivalent |
| O/P 2: Switching Output | Transistor, PNP |
| O/P 2: Switching Principle | NO contact β Antivalent |
| Switching frequency, max. | 2,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 12 mm x 54.2 mm |
| Type of installation | Non-embedded |
| Housing material | Metal; Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Gray Silver |
| Standard measuring plate | 12 x 12 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 Β°C Storage: -30 ... 80 Β°C |
| Degree of protection | IP 67 |
Please speak to our Technical Engineer for Leuze 54.2mm Length Inductive Switch ISS 212MM/44-4N0-S12 part no: 50141473 at attractive prices. Technical Specs Summary of ISS 212MM/44-4N0-S12, 50141473 includes 212 series, 4 mm Sensing, 10 ... 36 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, PNP , NO contact β Antivalent NC contact β Antivalent output 1, Transistor, PNP , NO contact β Antivalent output 2, 2,000 Hz, 1 Piece(s) Connection, M12 Connector , 4 -pin, Cylindrical, 12 mm x 54.2 mm dimentions, Non-embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Gray Silver color, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze 54.2mm Length Inductive Switch. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
