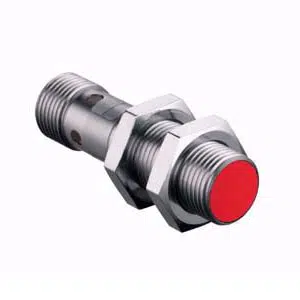

Leuze ISS 212MM/2NO-4E0-S12 Proximity Sensor
The Leuze ISS 212MM/2NO-4E0-S12 Proximity Sensor (Part No: ) offers a 4 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 180 & 240 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 212MM/2NO-4E0-S12 |
Leuze ISS 212MM/2NO-4E0-S12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 212 Series |
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA |
| Residual Current | 0.01 mA |
| Voltage drop | β€ 2 V |
| O/P 1: Switching Output | Transistor, NPN |
| O/P 1: Switching Principle | NO (normally open) |
| O/P 2: Switching Output | - |
| O/P 2: Switching Principle | - |
| Switching frequency, max. | 2,500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 12 mm x 45 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000, Silver |
| Standard measuring plate | 12 x 12 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | Operation: -25 ... 70 Β°C Operation: -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Send Your Inquiry for Leuze 45mm PNP Cylindrical Switch ISS 212MM/2NO-4E0-S12 part no: 50109687 at affordable rates. Core System Specifications of ISS 212MM/2NO-4E0-S12, 50109687 are 212 series, 4 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA current, Transistor, NPN, NO (normally open) output, 2,500 Hz, 1 Piece(s) Connection, M12 Connector , 4 -pin, Cylindrical, 12 mm x 45 mm dimentions, Embedded, Plastic, Polybutylene (PBT), 1 Piece(s) LEDs, Red, RAL 3000, Silver color, IP 67 degree of protection. Initiate Your Journey with a Quote for your requirement of Leuze 45mm PNP Cylindrical Switch. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
