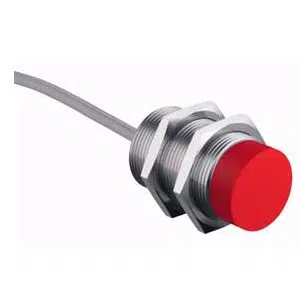

Leuze ISS 130MM/4NO-25N Proximity Sensor
The Leuze ISS 130MM/4NO-25N Proximity Sensor (Part No: ) offers a 25 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, PVC Cable, 2m Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 130MM/4NO-25N |
Leuze ISS 130MM/4NO-25N Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 130 Series |
| Sensing Distance | 25 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Γ x L) | 30 mm x 45 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 75 x 75 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Obtain a Quote for Leuze 25mm 30VDC Inductive Switch ISS 130MM/4NO-25N part no: 50136045 at economical prices. Specifications Overview for ISS 130MM/4NO-25N, 50136045 feature 130 series, 25 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 300 Hz, 0.01 mA max. β€ 2 V, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 30 mm x 45 mm dimensions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Take the First Step with a Quote for your requirement of Leuze 25mm 30VDC Inductive Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
