Many procurement teams check ISS-130MM-2NO-16E against IFM Proximity Sensor, Leuze Is 118 Mm 4No 8E0 M12 and Leuze Laser Sensor before signing purchase orders, verifying quality, compliance, and after-sales support availability.

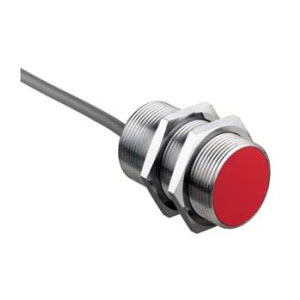

Leuze ISS 130MM/2NO-16E Proximity Sensor
The Leuze ISS 130MM/2NO-16E Proximity Sensor (Part No: ) offers a 16 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, PVC Cable, 2m Length connection, 3 -wire . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 130MM/2NO-16E |
Leuze ISS 130MM/2NO-16E Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 130 Series |
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 300 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire |
| Design | Cylindrical |
| Dimension (Γ x L) | 30 mm x 40 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 48 x 48 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze M30 Compact Inductive Switch ISS 130MM/2NO-16E part no: 50136062 with budget-friendly prices. The Main Technical Parameters of ISS 130MM/2NO-16E, 50136062 feature 130 series, 16 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN , NO (normally open) , 300 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire, Cylindrical, 30 mm x 40 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M30 Compact Inductive Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
