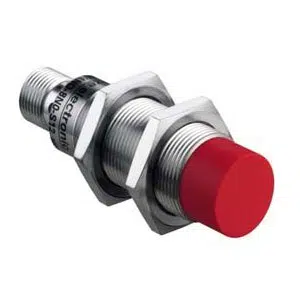

Leuze ISS 118MM/4NO-16N-M12 Proximity Sensor
The Leuze ISS 118MM/4NO-16N-M12 Proximity Sensor (Part No: ) offers a 16 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, PNP NO (normally open) output, M12 Connector connection, 4 -pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 118MM/4NO-16N-M12 |
Leuze ISS 118MM/4NO-16N-M12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 118 Series |
| Sensing Distance | 16 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, PNP |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 500 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4 -pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 18 mm x 53 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 48 x 48 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze M12 Connector PNP Inductive Switch ISS 118MM/4NO-16N-M12 part no: 50136057 with budget-friendly prices. The Main Technical Parameters of ISS 118MM/4NO-16N-M12, 50136057 feature 118 series, 16 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, PNP , NO (normally open) , 500 Hz, 1 Piece(s) Connection, M12 Connector, 4 -pin, Cylindrical, 18 mm x 53 mm dimensions, Non-embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M12 Connector PNP Inductive Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
