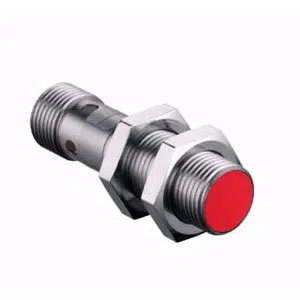

Leuze ISS 112MM/2NO-6E0-M12 Proximity Sensor
The Leuze ISS 112MM/2NO-6E0-M12 Proximity Sensor (Part No: ) offers a 6 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NO (normally open) output, M12 Connector connection, 4-Pin . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | ISS 112MM/2NO-6E0-M12 |
Leuze ISS 112MM/2NO-6E0-M12 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 112 Series |
| Sensing Distance | 6 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 200 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NO (normally open) |
| Switching frequency, max. | 800 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4-Pin |
| Design | Cylindrical |
| Dimension (Γ x L) | 12 mm x 55 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 18 x 18 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Call us forLeuze Shielded Inductive Sensor ISS 112MM/2NO-6E0-M12 part no: 50136034 at the best rates. The Main Technical Parameters of ISS 112MM/2NO-6E0-M12, 50136034 feature 112 series, 6 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 200 mA max. current, Transistor, NPN, NO (normally open) , 800 Hz, 1 Piece(s) Connection, M12 Connector, 4-Pin, Cylindrical, 12 mm x 55 mm dimensions, Embedded, Metal, Plastic, Polybutylene (PBT), Red, RAL 3000; Silver color, IP 67 degree of protection. at the best rates of Leuze NPN NC Inductive Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
